it always say port unavaliable when clicking enable diag port.
how to enabling diagnostic port on ZTE MF90?
thanx
Why do you click it? If you want to unlock it follow this guide: https://www.dc-unlocker.com/zte-mf90...d-unlock-guide device must be visible in device manager under modems and ports lines for it to be detectable, please check it.
Why do you click it? If you want to unlock it follow this guide: https://www.dc-unlocker.com/zte-mf90...d-unlock-guide device must be visible in device manager under modems and ports lines for it to be detectable, please check it.
following guide:
still cant fully detect.
DC - Unlocker 2 Client 1.00.1074
Detecting modem :
selection :
manufacturer - ZTE modems
model - Auto detect (recommended)

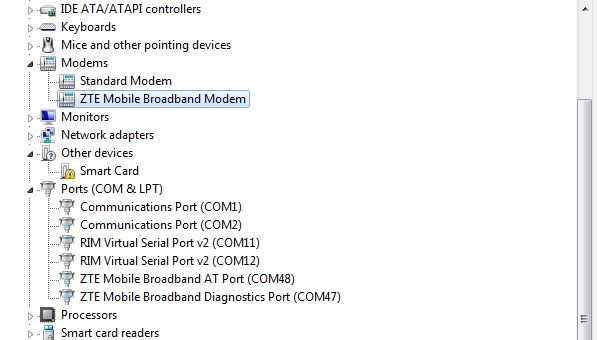

Okay, right click on your device that appears under modems line, select properties, then select modem tab and see what com port is shown there. Open dc-unlocker software, Select manufacturer and model manually this time. Write in Application field port that you see in mentioned location in Diagnostics COM47 then try to detect it. If it won't be detected Download : dc-unlocker_client-1.00.1057 https://www.dc-unlocker.com/downloads and detect with it by same method.
Okay, right click on your device that appears under modems line, select properties, then select modem tab and see what com port is shown there. Open dc-unlocker software, Select manufacturer and model manually this time. Write in Application field port that you see in mentioned location in Diagnostics COM47 then try to detect it. If it won't be detected Download : dc-unlocker_client-1.00.1057 https://www.dc-unlocker.com/downloads and detect with it by same method.
use 1057 version
DC - Unlocker 2 Client 1.00.1057
Detecting modem :
selection :
manufacturer - ZTE modems
model - ZTE MF90
Found modem : +CGMM: MF90
Model : ZTE MF90
IMEI : 862927020208337
Firmware : BD_BOLT_MF90V1.0.0B05
Compile date / time : Oct 18 2013 12:53:09
Chipset : Qualcomm
NAND Flash : MT29F2G08ABD
SIM Lock status : Locked (Card Lock)
after unlocking,try to check and this is the result:
DC - Unlocker 2 Client 1.00.1057
Detecting modem :
selection :
manufacturer - ZTE modems
model - ZTE MF90
Found modem : +CGMM: MF90
Model : ZTE MF90
IMEI : 862927020208337
Firmware : BD_BOLT_MF90V1.0.0B05
Compile date / time : Oct 18 2013 12:53:09
Chipset : Qualcomm
NAND Flash : MT29F2G08ABD
SIM Lock status : Locked (Card Lock) --> still locked?
It is still locked because you haven't read the guide that i gave earlier. You can see at the end of the guide that device restart/reset is necessary to complete procedure.
It is still locked because you haven't read the guide that i gave earlier. You can see at the end of the guide that device restart/reset is necessary to complete procedure.
it is now good
DC - Unlocker 2 Client 1.00.1057
Detecting modem :
selection :
manufacturer - ZTE modems
model - Auto detect (recommended)
Found modem : +CGMM: MF90
Model : ZTE MF90
IMEI : 862927020208337
Firmware : BD_BOLT_MF90V1.0.0B05
Compile date / time : Oct 18 2013 12:53:09
Chipset : Qualcomm
NAND Flash : MT29F2G08ABD
SIM Lock status : unlocked
but modem not recognized by application.
maybe should disable diag port?
selection :
manufacturer - ZTE modems
model - Auto detect (recommended)
Found modem : +CGMM: MF90
Model : ZTE MF90
IMEI : 862927020208337
Firmware : BD_BOLT_MF90V1.0.0B05
Compile date / time : Oct 18 2013 12:53:09
Chipset : Qualcomm
NAND Flash : MT29F2G08ABD
SIM Lock status : unlocked
but modem not recognized by application.
maybe should disable diag port?
Yes, you must do it as well. Note that you might get negative process message on dc-unlocker, but after it disconnect device and restart it, then check if it works.
