  • #46
    I bought EC122 in China. It was locked to China Telecom but I didn't use it for a connection yet (have no R-UIM card, bought to use in Ukraine in the future).

    I downloaded CDMA Unlocker 1.0020, bought 4 credits (account name is "emusic") and performed unlock action. Unlocker reported no warnings/errors and now reports that modem is unlocked now:

    Modem COM port : COM4
    Applications COM port : COM6
    QC Diagnostics port : COM5
    CGMM name : EC122
    MEID : 00000000000000
    ESN : 12DF060C
    IMSI : 000000000005964
    Serial number : HIABYA92C0510498
    Hardware version : CE1EC156M
    Firmware : 11.106.07.00.000
    Firmware Build Date : May 13 2011 22:12:22
    Dashboard version : ChinaTelecom_V2.1.0(0516)_Mac21.005.15.00.45_Linux 21.005.15.00.45
    Chipset platform : QUALCOMM
    Chipset name : Qualcomm MDM6085
    R-UIM settings: R-UIM Only
    Lock status: Not locked

    Since I have no R-UIM card now, I just wanted to replace China Telecom dashboard with a plain Huawei one. So I have downloaded Dashboard_WIN_UTPS11.030.01.04.03.B409 from dc-files.com (from EC122 selection) but it is unable to detect the modem (error code 3 - data card is not found).

    I have downloaded EC122_Firmware_TCPUB104D04SP00C000(Normal). It successfully detects the modem, switches it to download mode (blinking blue light turns to continuous green). If the updater is started first time after inserting the modem in a particular USB slot, "installing drivers for your hardware" balloons appear (as I understood, because of switching modem to the bootloader mode). On successive updater runs, no such balloons appear.

    The updater doesn't ask for a code. After several seconds, it aborts with error message: "The wireless terminal inserted is not EC122X_2K, update wizard can't work on". Modem remains with continuous green light until removed. After re-insertion, modem works normally.

    I tried to change to a plain Huawei firmware and have downloaded EC122Update_11.104.04.01.656.B704. It successfully detects the modem too, switches it do download mode but after several seconds aborts with error message: "Error Code:17, The wireless terminal inserted is not EC122X_2K, Update Wizard can't continue". If I click OK quickly, it closes otherwise it hangs and can be closed only by process termination. After several seconds, continuous green light changes to blinking blue and the modem returns to normal operations without re-insertion.

    How can I download plain Huawei firmware and dashboard to the modem?

    I noticed that MEID is all zeros now but don't remember whether that was from the beginning. Can it be meaningful? In the examples, I see that MEID is all zeros after unlocking but changes after downloading the "normal" firmware.

    Comment


    • #47
      Originally posted by emusic View Post
      I bought EC122 in China. It was locked to China Telecom but I didn't use it for a connection yet (have no R-UIM card, bought to use in Ukraine in the future).

      I downloaded CDMA Unlocker 1.0020, bought 4 credits (account name is "emusic") and performed unlock action. Unlocker reported no warnings/errors and now reports that modem is unlocked now:

      Modem COM port : COM4
      Applications COM port : COM6
      QC Diagnostics port : COM5
      CGMM name : EC122
      MEID : 00000000000000
      ESN : 12DF060C
      IMSI : 000000000005964
      Serial number : HIABYA92C0510498
      Hardware version : CE1EC156M
      Firmware : 11.106.07.00.000
      Firmware Build Date : May 13 2011 22:12:22
      Dashboard version : ChinaTelecom_V2.1.0(0516)_Mac21.005.15.00.45_Linux 21.005.15.00.45
      Chipset platform : QUALCOMM
      Chipset name : Qualcomm MDM6085
      R-UIM settings: R-UIM Only
      Lock status: Not locked

      Since I have no R-UIM card now, I just wanted to replace China Telecom dashboard with a plain Huawei one. So I have downloaded Dashboard_WIN_UTPS11.030.01.04.03.B409 from dc-files.com (from EC122 selection) but it is unable to detect the modem (error code 3 - data card is not found).

      I have downloaded EC122_Firmware_TCPUB104D04SP00C000(Normal). It successfully detects the modem, switches it to download mode (blinking blue light turns to continuous green). If the updater is started first time after inserting the modem in a particular USB slot, "installing drivers for your hardware" balloons appear (as I understood, because of switching modem to the bootloader mode). On successive updater runs, no such balloons appear.

      The updater doesn't ask for a code. After several seconds, it aborts with error message: "The wireless terminal inserted is not EC122X_2K, update wizard can't work on". Modem remains with continuous green light until removed. After re-insertion, modem works normally.

      I tried to change to a plain Huawei firmware and have downloaded EC122Update_11.104.04.01.656.B704. It successfully detects the modem too, switches it do download mode but after several seconds aborts with error message: "Error Code:17, The wireless terminal inserted is not EC122X_2K, Update Wizard can't continue". If I click OK quickly, it closes otherwise it hangs and can be closed only by process termination. After several seconds, continuous green light changes to blinking blue and the modem returns to normal operations without re-insertion.

      How can I download plain Huawei firmware and dashboard to the modem?

      I noticed that MEID is all zeros now but don't remember whether that was from the beginning. Can it be meaningful? In the examples, I see that MEID is all zeros after unlocking but changes after downloading the "normal" firmware.
      dc-files.com is not our website nor we advertise it or suggest for our users. Also maybe at update time there are more modems connected to pc?
      >>Free Octohide VPN for Android, find it on Google Play Here<<

      Comment


      • #48
        I used firmware and dashboard upgrade files from dc-files.com with several Huawei modems (E160, E1550, E172/173, E176) with invariably excellent results so I'm sure they provide correct upgrade applications. 11.104.04.01.656.B704 firmware can be downloaded from many communication related sites and is considered to be a "de facto standard".

        No more modems are connected to the computer. Moreover, no other COM ports exist (it is a modern notebook). I tried all of these update applications on both this notebook under Win7 x64 and a desktop under XP x86, with exactly the same results.

        Could you please suggest a way to analyze the problem? I'm an experienced hardware/computer engineer and low-level software developer so I could use some advanced methods, if any.

        Comment


        • #49
          Originally posted by emusic View Post
          I used firmware and dashboard upgrade files from dc-files.com with several Huawei modems (E160, E1550, E172/173, E176) with invariably excellent results so I'm sure they provide correct upgrade applications. 11.104.04.01.656.B704 firmware can be downloaded from many communication related sites and is considered to be a "de facto standard".

          No more modems are connected to the computer. Moreover, no other COM ports exist (it is a modern notebook). I tried all of these update applications on both this notebook under Win7 x64 and a desktop under XP x86, with exactly the same results.

          Could you please suggest a way to analyze the problem? I'm an experienced hardware/computer engineer and low-level software developer so I could use some advanced methods, if any.
          If you have downloaded this firmware file from dc-files then try to download one from our support area website that is accessed from CDMA modems unlocker program's help tab. Let me know if it also says that modem that is connected to pc is not ec122.
          >>Free Octohide VPN for Android, find it on Google Play Here<<

          Comment


          • #50
            The "EC122_Firmware_TCPUB104D04SP00C000(Normal).zi p" file had been downloaded from your support area (a link from the Unloker's window).

            Comment


            • #51
              Originally posted by emusic View Post
              The "EC122_Firmware_TCPUB104D04SP00C000(Normal).zi p" file had been downloaded from your support area (a link from the Unloker's window).
              Apparently you can not write this firmware because your devicedetected with Hardware version : CE1EC156M , maybe there are more modems connected to pc when you try to update your ec122? And are you sure its ec122? Do you use autodetect option by the program or you select model manually?
              >>Free Octohide VPN for Android, find it on Google Play Here<<

              Comment


              • #52
                Thank you very much for pointing me to the hardware version. I'm not so familiar with Huawei modems to check it so I had no reason to doubt.

                I bough this modem in China's store visiting China in March. It was packed to an original box (I thrown it away to save space in the luggage), had some papers inside and looked absolutely new and unused (photo 1).

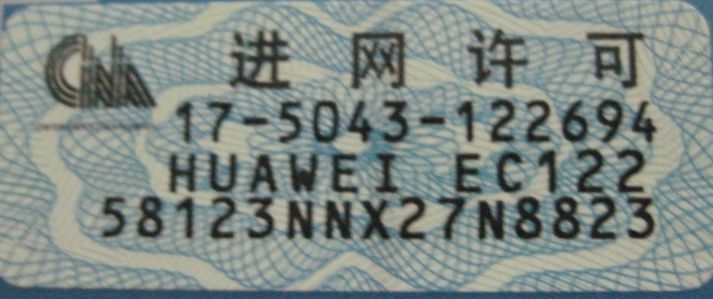

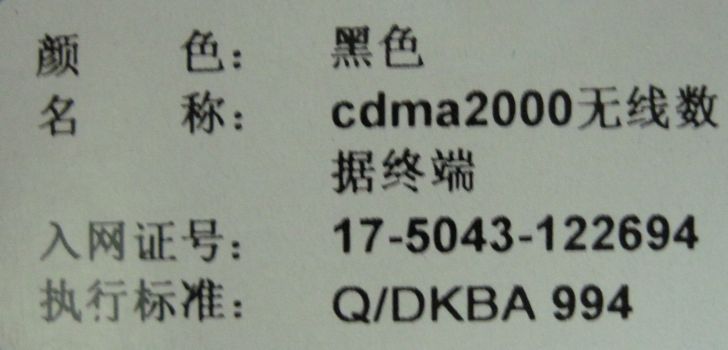

                Some stickers were on the box (photos 2 and 3). I don't know what these codes mean so I took the photos before throwing the box away.

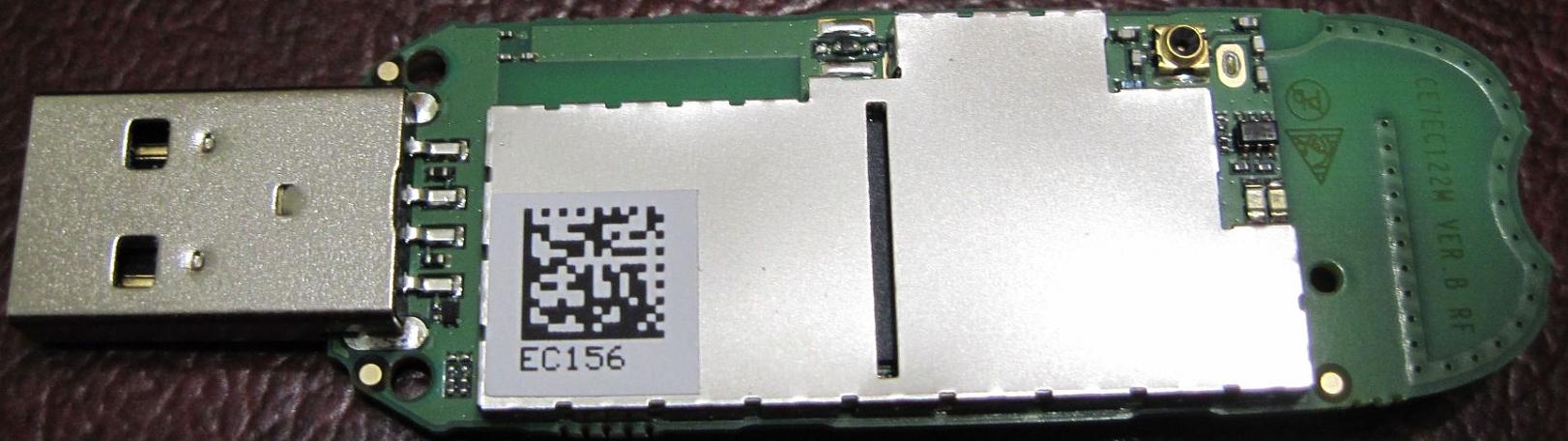

                After opening the case, I noticed that actually it is EC156 (photo 4). On the end of PCB, there is "CE7EC122M VER. B RF" mark. Does it mean that EC122 and EC156 share the same PCB?

                I have downloaded "EC156_Firmware_TCPUR001B106D00SP06C000(Normal).zi p" package from your support area and the updater successfully downloaded the firmware:

                CGMM name : EC122
                MEID : 00000000000000
                ESN : 00000000
                IMSI : 111111110000000
                Serial number : HIABYA92C0510498
                Hardware version : CE1EC156M
                Firmware : 11.106.00.06.000
                Firmware Build Date : Feb 11 2011 18:58:01
                Dashboard version : ChinaTelecom_V2.1.0(0516)_Mac21.005.15.00.45_Linux 21.005.15.00.45
                Chipset platform : QUALCOMM
                Chipset name : Qualcomm MDM6085
                R-UIM settings: R-UIM Only
                Lock status: Not locked

                I have successfully updated the dashboard with UTPS16.001.06.01.500.exe:

                CGMM name : EC122
                MEID : 00000000000000
                ESN : 00000000
                IMSI : 111111110000000
                Serial number : HIABYA92C0510498
                Hardware version : CE1EC156M
                Firmware : 11.106.00.06.000
                Firmware Build Date : Feb 11 2011 18:58:01
                Dashboard version : UTPS16.001.05.00.45_MAC15.001.08.01.45_LNX15.001.0 8.01.45
                Chipset platform : QUALCOMM
                Chipset name : Qualcomm MDM6085
                R-UIM settings: R-UIM Only
                Lock status: Not locked

                But internal name is still EC122, MEID is all zeros and IMSI was changed from 000000000005964 to 111111110000000.

                Both "normal" firmware updater and dashboard updater reported ESN 12DF060C after finishing but Unlocker always shows ESN 00000000 now. May these codes be meaningful for future modem usage? If yes, how to change them?
                Attached Files

                Comment


                • #53
                  Originally posted by emusic View Post
                  Thank you very much for pointing me to the hardware version. I'm not so familiar with Huawei modems to check it so I had no reason to doubt.

                  I bough this modem in China's store visiting China in March. It was packed to an original box (I thrown it away to save space in the luggage), had some papers inside and looked absolutely new and unused (photo 1).

                  Some stickers were on the box (photos 2 and 3). I don't know what these codes mean so I took the photos before throwing the box away.

                  After opening the case, I noticed that actually it is EC156 (photo 4). On the end of PCB, there is "CE7EC122M VER. B RF" mark. Does it mean that EC122 and EC156 share the same PCB?

                  I have downloaded "EC156_Firmware_TCPUR001B106D00SP06C000(Normal).zi p" package from your support area and the updater successfully downloaded the firmware:

                  CGMM name : EC122
                  MEID : 00000000000000
                  ESN : 00000000
                  IMSI : 111111110000000
                  Serial number : HIABYA92C0510498
                  Hardware version : CE1EC156M
                  Firmware : 11.106.00.06.000
                  Firmware Build Date : Feb 11 2011 18:58:01
                  Dashboard version : ChinaTelecom_V2.1.0(0516)_Mac21.005.15.00.45_Linux 21.005.15.00.45
                  Chipset platform : QUALCOMM
                  Chipset name : Qualcomm MDM6085
                  R-UIM settings: R-UIM Only
                  Lock status: Not locked

                  I have successfully updated the dashboard with UTPS16.001.06.01.500.exe:

                  CGMM name : EC122
                  MEID : 00000000000000
                  ESN : 00000000
                  IMSI : 111111110000000
                  Serial number : HIABYA92C0510498
                  Hardware version : CE1EC156M
                  Firmware : 11.106.00.06.000
                  Firmware Build Date : Feb 11 2011 18:58:01
                  Dashboard version : UTPS16.001.05.00.45_MAC15.001.08.01.45_LNX15.001.0 8.01.45
                  Chipset platform : QUALCOMM
                  Chipset name : Qualcomm MDM6085
                  R-UIM settings: R-UIM Only
                  Lock status: Not locked

                  But internal name is still EC122, MEID is all zeros and IMSI was changed from 000000000005964 to 111111110000000.

                  Both "normal" firmware updater and dashboard updater reported ESN 12DF060C after finishing but Unlocker always shows ESN 00000000 now. May these codes be meaningful for future modem usage? If yes, how to change them?
                  No these codes won't affect your usage of device in future. As dc-unlocker does not change such data in device i do not have information on how to do it if you'd like to.
                  >>Free Octohide VPN for Android, find it on Google Play Here<<

                  Comment


                  • #54
                    I see I'm not the only guy with EC156 marked as EC122. Googling with "ec122 CE1EC156M" gives many pages where EC122 has hardware version CE1EC156M.

                    Maybe it would be reasonable to mention in Unlocker tutorials and add some verification to the code?
                    Last edited by Valdemaras; 2013-05-06, 01:05 PM.

                    Comment


                    • #55
                      Originally posted by emusic View Post
                      I see I'm not the only guy with EC156 marked as EC122. Googling with "ec122 CE1EC156M" gives many pages where EC122 has hardware version CE1EC156M.

                      Maybe it would be reasonable to mention in Unlocker tutorials and add some verification to the code?
                      Yes, thank you for this notice.
                      >>Free Octohide VPN for Android, find it on Google Play Here<<

                      Comment


                      • #56
                        I found yet another firmware updater (EC156Update_11.106.03.03.113.B726.exe). In the binary image (the "BIN\250" resource), it contains several "V001:EC156:11.106.03.03.113" strings but additionally contains "11.106.07.00.113-BOOT" and "QCT 11.106.07.00.113" ones.

                        After updating to this firmware, Unlocker shows initial ESN/IMSI again:

                        MEID : 00000000000000
                        ESN : 12DF060C
                        IMSI : 000000000005964
                        Serial number : HIABYA92C0510498
                        Hardware version : CE1EC156M
                        Firmware : 11.106.07.00.113
                        Firmware Build Date : May 17 2011 12:15:26
                        Dashboard version : UTPS16.001.05.00.45_MAC15.001.08.01.45_LNX15.001.0 8.01.45
                        Chipset platform : QUALCOMM
                        Chipset name : Qualcomm MDM6085
                        R-UIM settings: R-UIM Only
                        Lock status: Not locked

                        It turns out that some identification codes read by Unlocker are firmware-dependent?

                        Comment


                        • #57
                          Originally posted by emusic View Post
                          I found yet another firmware updater (EC156Update_11.106.03.03.113.B726.exe). In the binary image (the "BIN\250" resource), it contains several "V001:EC156:11.106.03.03.113" strings but additionally contains "11.106.07.00.113-BOOT" and "QCT 11.106.07.00.113" ones.

                          After updating to this firmware, Unlocker shows initial ESN/IMSI again:

                          MEID : 00000000000000
                          ESN : 12DF060C
                          IMSI : 000000000005964
                          Serial number : HIABYA92C0510498
                          Hardware version : CE1EC156M
                          Firmware : 11.106.07.00.113
                          Firmware Build Date : May 17 2011 12:15:26
                          Dashboard version : UTPS16.001.05.00.45_MAC15.001.08.01.45_LNX15.001.0 8.01.45
                          Chipset platform : QUALCOMM
                          Chipset name : Qualcomm MDM6085
                          R-UIM settings: R-UIM Only
                          Lock status: Not locked

                          It turns out that some identification codes read by Unlocker are firmware-dependent?
                          Yes, true.
                          >>Free Octohide VPN for Android, find it on Google Play Here<<

                          Comment


                          • #58
                            Readed modem info:


                            MEID : A1000002C4BEAE
                            ESN : 80D90FB7
                            IMSI : 404000844668841
                            Serial number : A4G5TA9291328596
                            Hardware version : CE1EC156M
                            Firmware : 11.106.00.06.000
                            Firmware Build Date : Feb 11 2011 18:58:01
                            Dashboard version : UTPS21.005.22.23.628_MAC21.005.22.05.628_LNX21.005 .22.05.628
                            Chipset platform : QUALCOMM
                            Chipset name : Qualcomm MDM6085
                            R-UIM settings: R-UIM Only
                            Lock status: Not locked


                            after all ur process i done but its not at all connecting to any cdma networks
                            we r facing problem with this
                            any solution is there means reply me


                            and another doubt
                            Copy Firmware Updater code from the program window and paste it in EC156 update wizard window. Click Next button

                            but ec156 is not asking any firmware code also uptonow i done 6sets for all the sets its not asking firmware update code also

                            so plz reply me

                            Comment


                            • #59
                              Originally posted by mk.help View Post
                              Readed modem info:


                              MEID : A1000002C4BEAE
                              ESN : 80D90FB7
                              IMSI : 404000844668841
                              Serial number : A4G5TA9291328596
                              Hardware version : CE1EC156M
                              Firmware : 11.106.00.06.000
                              Firmware Build Date : Feb 11 2011 18:58:01
                              Dashboard version : UTPS21.005.22.23.628_MAC21.005.22.05.628_LNX21.005 .22.05.628
                              Chipset platform : QUALCOMM
                              Chipset name : Qualcomm MDM6085
                              R-UIM settings: R-UIM Only
                              Lock status: Not locked


                              after all ur process i done but its not at all connecting to any cdma networks
                              we r facing problem with this
                              any solution is there means reply me


                              and another doubt
                              Copy Firmware Updater code from the program window and paste it in EC156 update wizard window. Click Next button

                              but ec156 is not asking any firmware code also uptonow i done 6sets for all the sets its not asking firmware update code also

                              so plz reply me
                              Are you using not branded connection manager to connect to other networks?
                              >>Free Octohide VPN for Android, find it on Google Play Here<<

                              Comment


                              • #60
                                Originally posted by Valdemaras View Post
                                Are you using not branded connection manager to connect to other networks?

                                i am using branded connection manager only using but its not working how to solve that plz

                                Comment
